Hi Power Card Edge
read more

High Power Card Edge

  • Comply with OCP M-CRPS specification.
  • High-Power Capability: Supports up to 4500W (4 layers and 6oz copper for each layer)
  • Multi-Contact Power Design: Enhances conductivity and reduces contact resistance
  • Stable Signal Structure: Recessed terminal design prevents damage during mating
  • Efficient Thermal Performance: Enhanced cooling design for superior heat dissipation.
  • High Assembly Accuracy: PIP-compatible design ensures precise PCB alignmen
4500W High-Power Connector – Upgraded 9305 Series

375Amp 4500W Power+Signal Card Edge 9305-G Series

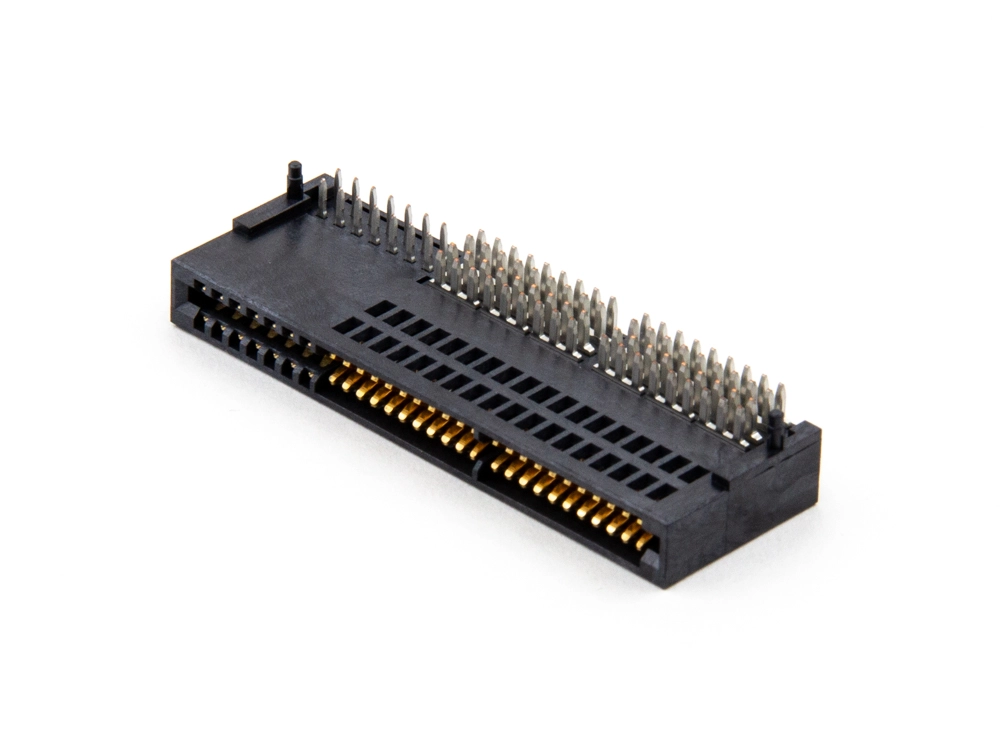

9305-G4P12S14B7SAA01

Part No.

9305-G4P12S14B7SAA01

Desc.

4500W Power + Signal Card Edge Connector R/angle Type
