High Power BTB Connectors 65AMP to 150AMP

read more
9311 Flyer
  •   High power capability up to 100A per pin; low power up to 65A per pin, ideal for demanding current requirements
  •   Ultra-low board height of 11.40mm, perfectly suited for 1U/2U power supplies or distribution systems
  •   High-ventilation structure design enhances heat dissipation, ensuring stable system operation
  •   Halogen-free materials meeting international environmental standards
  •   Wide operating temperature range: -40 to +125, supporting extreme environments
  •   Available in right-angle male and female connectors; straight versions are under development for coplanar and backplane applications
  •   Customizable number and placement of power and signal contacts to meet specific customer needs
  •   Offers both solder and press-fit board mounting options for flexible implementation

100A/65A PwrSword® Ultra HD+ 9303-D Series

9303-D1P07S36B7SAA01

Part No.

9303-D1P07S36B7SAA01

Desc.

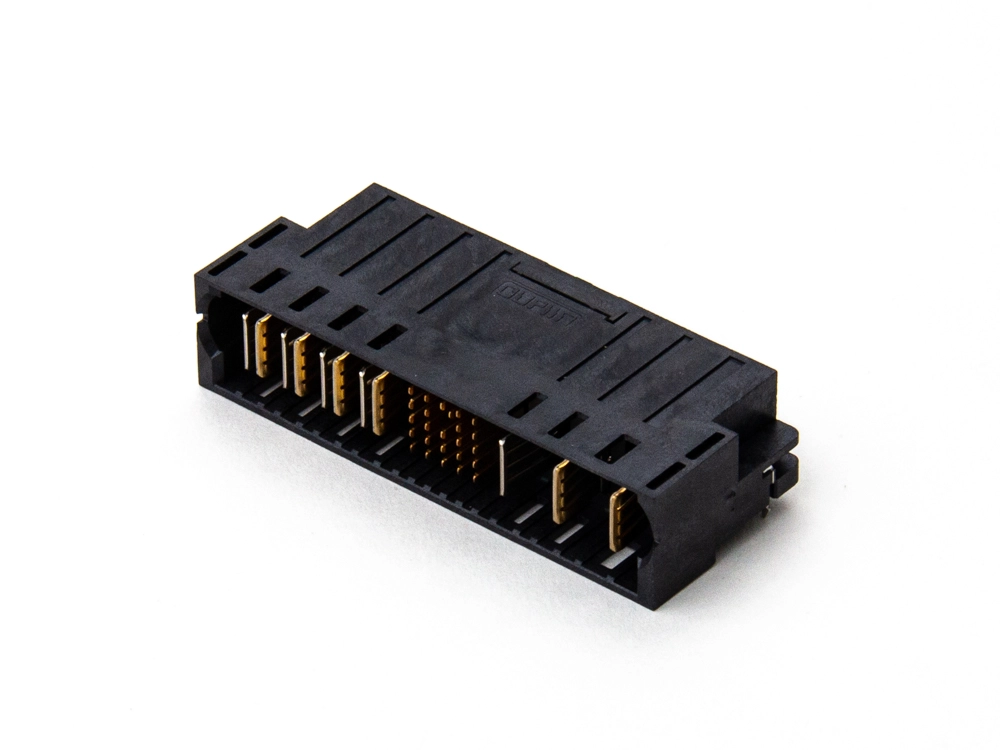

PwrSword® Ultra HD+ Male Right Angle Solder Type 7 Power 36 Signal

9303-D4P07S36B7SAA01

Part No.

9303-D4P07S36B7SAA01

Desc.

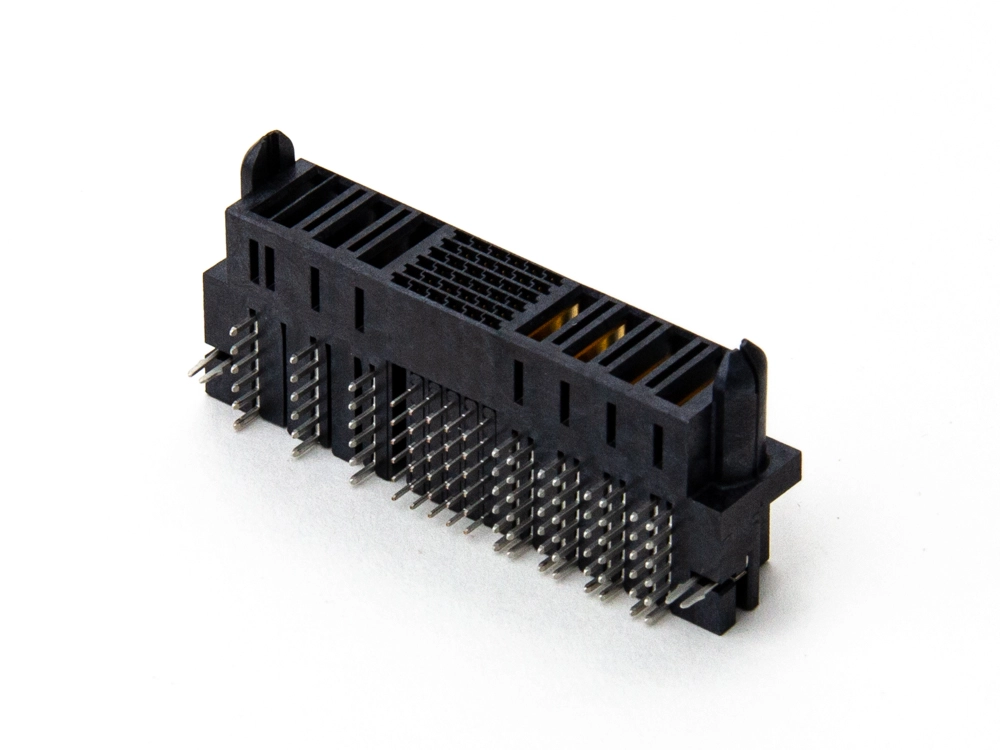

PwrSword® Ultra HD+ Female Right Angle Solder Type 7 Power 36 Signal

9303-D1P08S30B7SAA01

Part No.

9303-D1P08S30B7SAA01

Desc.

PwrSword® Ultra HD+ Male Right Angle Solder Type 8 Power 30 Signal

9303-D4P08S30B7SAA01

Part No.

9303-D4P08S30B7SAA01

Desc.

PwrSword® Ultra HD+ Female Right Angle Solder Type 8 Power 30 Signal
