Busbar Clip Power

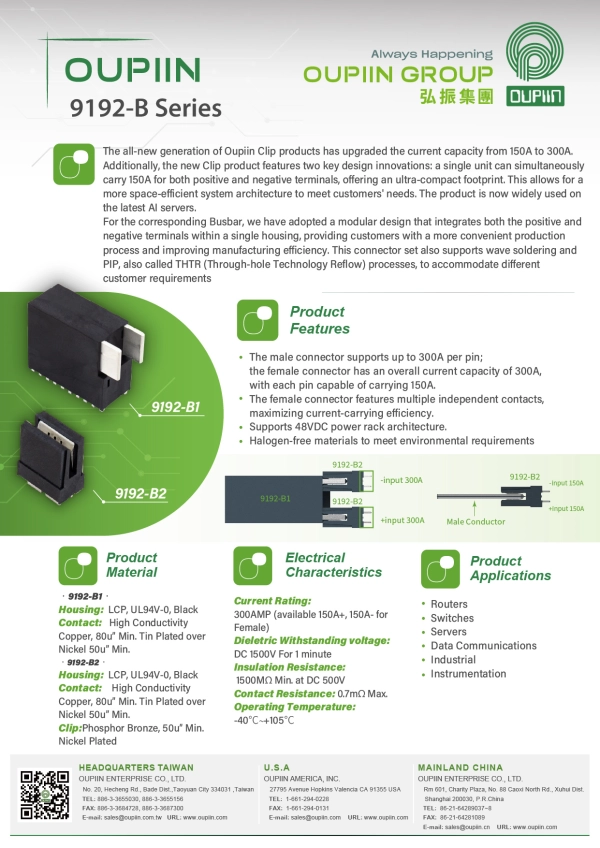

Busbar Clip Power Up to 300Amp

The male connector supports up to 300A per pin;
the female connector has an overall current capacity of 300A,
with each pin capable of carrying 150A.
The female connector features multiple independent contacts,
maximizing current-carrying efficiency.
Supports 48VDC power rack architecture.
Halogen-free materials to meet environmental requirements

9192-B

300Amp 9192-B Series

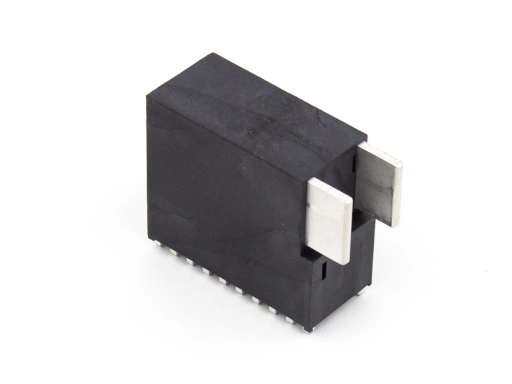

9192-B1P02TSAA01

Part No.

9192-B1P02TSAA01

Desc.

300Amp Male Right Solder Type

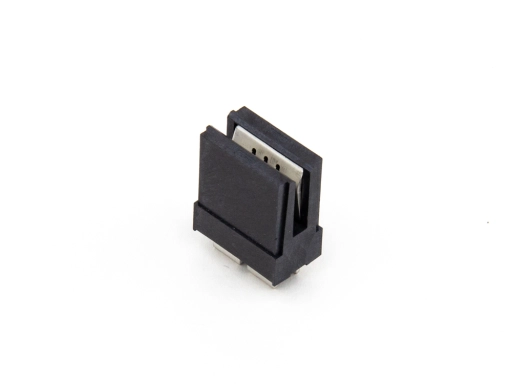

9192-B2P02TSAA01

Part No.

9192-B2P02TSAA01

Desc.

300Amp BusBar Clip Straight type
