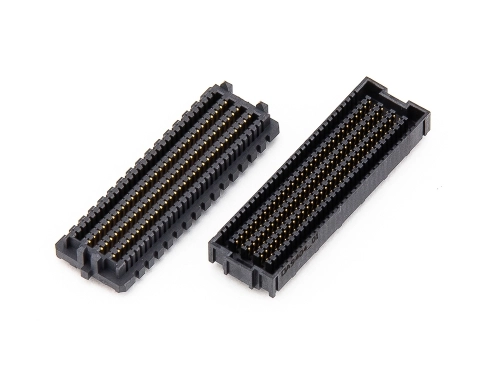

Pin count 20P through 120PSelf-Alignment MechanismFloating DesignDedicated Power pin/Ground pin design8Gbps NRZ/16Gbps PAM4100 Mating cycle

PwrFULL® can handle up to 100A per pin.The high-ventilation structure design maximizes heat dissipation, enabling efficient system cooling.Halogen-free materials to meet environmental requirements.Currently available in vertical receptacles and right-angle plugs. Future development includes right-angle receptacles, suitable for parallel board and backplane applications.10 contact points ensure long-term reliability.Extremely low resistance and low voltage drop.

The Oupiin 9303-C Series PwrSword® Ultra HD Connector is a versatile, high-current connector ideal for applications demanding efficient power distribution with effective thermal management.High Power & Signal Capabilities: Supports power up to 75A (DC) for high-power applications, 45A (AC) for lower power needs, and signal pin currents up to 1.8A.Configurable Design: The number and placement of power and signal contacts can be tailored to customer specifications.Thermal Efficiency: The low profile (9.60mm above the board) allows improved airflow, enhancing cooling, and is ideal for compact systems like 1U power supplies.Enhanced Contact Stability: Features double spring contacts on signal terminals for reliable connectivity.     Housing & Connection Types: It has ventilated housing, an anti-return pin design, and solder and press-fit options.
